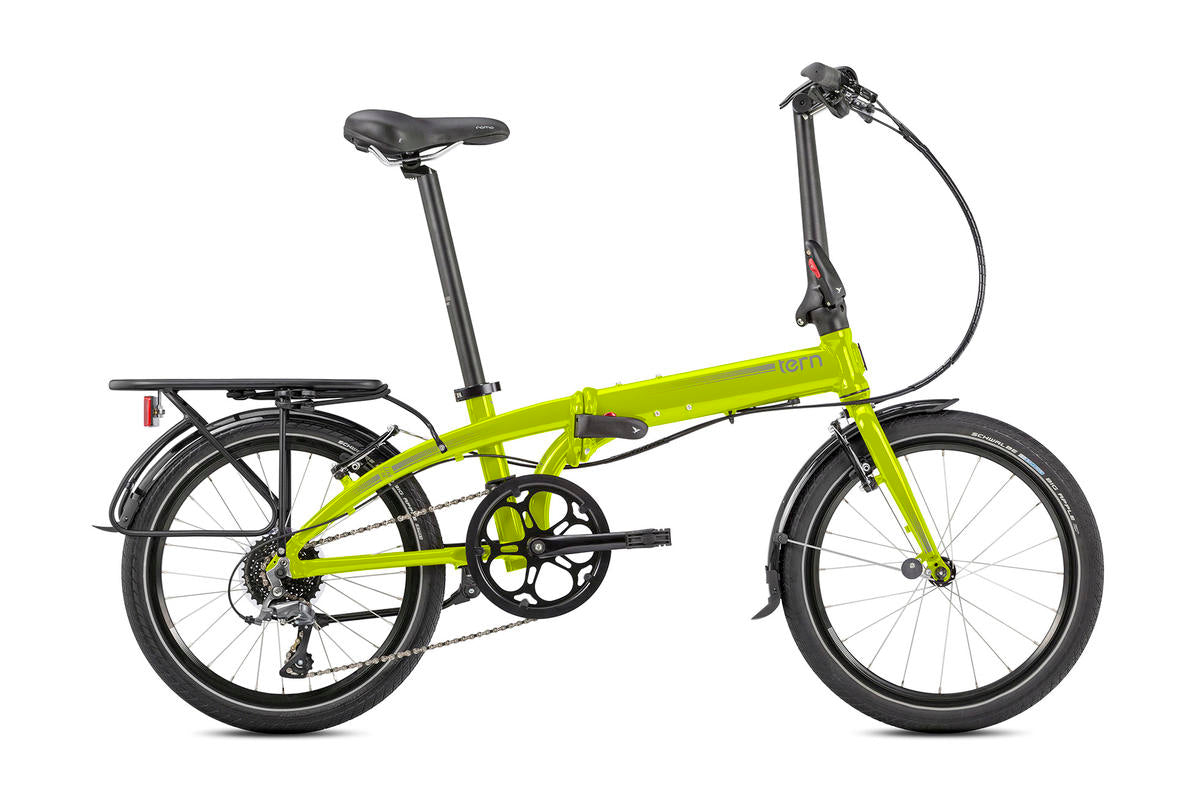

Tern Link D8

Mobile phones, umbrellas, point and shoot cameras, the natural arc of evolution moves in a direction of increasing portability, the bicycle is no different. The Link D8 is your everyday travel companion, whether your trip is exclusively on two wheels or in combination with buses, trains, or automobiles.

• 8-speed drivetrain for all the range you need in the city
• Andros, handlebar stem for tool-free riding position adjustments on the fly
• Shimano Claris rear derailleur for quick and responsive gear shifting
• Schwalbe Big Apple tires with Kevlar puncture protection
• Folds in under 10 seconds to fit under a desk
• Magnetix, 2.0 lock the bike in place when folded
• Rear rack, fenders included as standard equipment

Specification

General Info


Color:

Wheel Size:
20" wheels


Speeds:
1 x 8


Weight:

12.1 kg (26.7 lb)

Folding Size:
38 x 79 x 72 cm (15" x 31.1" x 28.3")


Folding Time:
10 sec


Frame Sizes:
One size


Gear Inches:
33" - 87" (2.60 - 6.94 m)


Distance: Seatpost to Handlebar:
Min. 620 mm (24.4") Max: 690 mm (27.2")


Distance: Saddle to Pedal:
Min: 700 mm (27.6") Max: 960 mm (37.8")


Suggested Rider Height:
142 - 190 cm (4'8" - 6'3")


Max Load Weight:
105 kg (230 lb)


Frame


Frame:
Tern Link, aluminum, OCL Joint, 3 patented technologies


Fork:
Integrated, hi-tensile steel


Cockpit


Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12'', 350 mm


Stem:
Tern Andros (G2), adjustable, forged construction, patented technology


Headset:
Flux, cartridge bearings, Physis integrated


Handlebar:
Flat bar, 6061-Al, Andros butted


Grips/Bar Tape:
Velo ergonomic, lock-on


Saddle:
BioLogic Como DLX


Seatpost:
SuperOversize, 6061-AL, micro-adjust clamp


Seatpost Clamp:
SuperOversize, 6061-AL


Brakes


Front Brake:
V, aluminum, linear spring


Rear Brake:
V, aluminum, linear spring


Brake Levers:
V, aluminum bracket/lever


Brake Cable & Housing:
Anti-compression housing, slick cables




Wheels


Front Hub:
Mini, aluminum, QR Opt: Panasonic dynamo


Rear Hub:
Formula, 8 spd cassette


Spokes and Nipples:
Sapim Leader, stainless steel


Rims:
Doublewall aluminum


Tires:
Schwalbe Big Apple, 50-406, puncture protection, Reflex


Transmission


Shifter(s):
Shimano trigger, 1 x 8 spd


Rear Derailleur:
Shimano Claris


Crankset:
Forged 6061 aluminum crank arms, hand-polished


Cassette/Freewheel:
11-32T, 8 spd


Bottom Bracket:
Cartridge, sealed bearings


Chain:
8 spd.


Pedals:
Folding, alloy body


Shifter Cable & Housing:
SP


Bells & Whistles


Bell:
Aluminum


Kickstand:
Deluxe center mount


Clip System:
Magnetix 2.0


Luggage Socket:
Yes


Front Light:
Opt: Tern Valo 2, integrated, 41 lux/150 lumens


Rear Light:
Opt: Deluxe LED


Fenders:
RP Chromeplastic, stainless hardware


Rack(s):
Tern Loader Rack

*Note: These are our standard model
specifications. The bike's weight and folded dimension may not include
racks and fenders. The specifications for your country may differ
slightly. We do our best to ensure that the specifications listed here
accurately reflect the exact parts found on our production bikes.
However, component changes do occur for various reasons and there may be
brief delays on site updates. We reserve the right to make component
changes without prior notification, which may cause discrepancies with
the information listed on the web.
