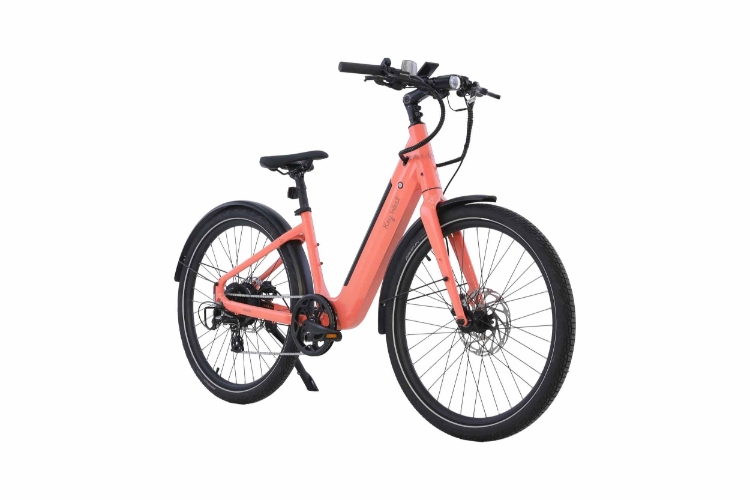

Aima Key West Ebike

Key West, FL – The southern tip of the US. Where One Road Ends, Another Begins.

It's the end of the road for most, but it's right where the Key West's journey begins! At 54lbs, the Key West is the lightest ebike in our line up and is ready for you to embark on your next journey. Take it to the beach, cruise around your neighborhood, or crush your morning commute, the Key West does it all.

Lightweight for ease of putting on your bike rack or in the back of your truck. Brand new BAFANG TFT Smart Display keeps you connected and in control of customizing your riding experience. Integrated lighting and turn signals keep you seen and our signature oversized 203mm brake rotors help you stop on a dime. The Key West keeps you comfortable with an adjustable stem and ergonomic hand grips.

Key West is the next generation of lightweight cruiser ebikes made by AIMA!

Technical Specifications

MOTOR

500W, 48V Brushless Rear Hub Motor

THROTTLE

Throttle on Demand

DISPLAY

BAFANG C010 4.0 inch TFT Smart Display w/Navigation, Incoming call & Text message alerts

SPEED

Up to 28 MPH Pedal Assist, 20 MPH Throttle

BATTERY

Removable Internal Lithium-ion 48V, 12.8Ah (614Wh)

LIGHTING

Integrated Headlight, Tail Light, and Turn Signals

PEDAL SENSOR

Customizable w/Torque & Cadence Modes

PEDAL ASSIST

5 PAS Levels

CHARGER

48V, 3 Amp Fast Charger, about 5 Hours to a Full Charge

RANGE

24 to 50 Miles

FRAME

6061 Single-Butted Aluminum Alloy Frame with Internal Battery

WEIGHT

54 lbs. (w/o fenders)

PEDALS

9/16" Alloy Platform

FORK

Lightweight Rigid Aluminum Fork

WEIGHT LIMIT

400 lbs.

KICKSTAND

Aluminum Alloy Kickstand

CRANKSET

170mm w/ 52T Chainring

SHIFTER

Shimano 8 Speed

CASSETTE

8 Speed, 11-34T

BRAKES

Tektro Hydraulic Disc Brakes, 203 mm Rotors

CHAIN

8 Speed

RIMS

Double Wall Aluminum Alloy

SPOKES

Black Stainless 12G Front / 12G Rear

TUBES

Butyl Rubber

FRONT HUB

Aluminum Alloy Disc

TIRES

27.5" x 2.1"

SADDLE

AIMA Lightweight Performance Saddle

SEATPOST

Aluminum Alloy, 30.4mm 2-Bolt Clamp, 300mm

STEM

Threadless, 31.8mm, 10°-80° Rise, Length: S: 90mm | M: 110mm

SEAT CLAMP

34.9mm Quick Release

HANDLEBARS

Aluminum Alloy Double Wall, 31.8mm, 680mm

HEADSET

Sealed Bearing Headset

GRIPS

Ergonomic Comfort
