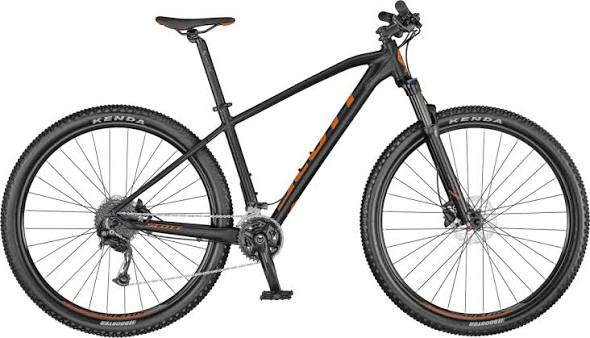

Scott Aspect 940

light, efficient, and reasonably priced. Featuring a lockout mechanism

for the fork, disc brakes, and Syncros components, this is the perfect

bike for the novice or budget conscious mountain biker.

Key Features

- Aspect 700/900 Alloy Frame

- Suntour XCR32-LO-R 100mm

- Shimano Alivio 18 Speed Drivetrain

- Shimano Hydraulic Disc Brakes

- Kenda Booster Tires

Drivetrain

Bottom Bracket

Shimano BB-MT500, Hollowtech II / threaded

Chain

KMC X9

Chainrings

36x22T

Cassette

Shimano CS-HG200-9 / 11-36T

Shifters

Shimano SL-M3100, R-fire plus / 2 way release, w/gear indicator

Crankset

Shimano FC-MT2102, 2-piece Design

Front Derailleur

Shimano FD-M3120 Side Swing / 31.8mm

Rear Derailleur

Shimano Deore RD-M3100, 18 Speed

Wheels

Hubs

Front: Shimano HB TX505
Rear: Shimano FH-TX5058

Cockpit

Seat Post

Syncros 3.0, 31.6mm / 350mm / Black

Stem

Syncros 3.0 / 7° / Black

Handlebar

Syncros 3.0 / 720mm, black / 31.8mm / 12mm rise / 9° BS, Syncros Pro Grip

Saddle

Syncros 3.0

Brakes

Brakes

Shimano MT200 / Hydr. Disc

Frameset

Frame

Aspect 900-700 series / Alloy 6061 Custom Butted Tubing, BSA73 / Internal Cable Routing / replaceable hanger

Headset

Syncros OE Press Fit / 1 1/8", OD 50mm / ID 44mm
