Technical Specifications
FRAMESET
FRAME
FACT 11r carbon, Rider-First Engineered™, Win Tunnel Engineered, internal electric only cable routing, OSBB, 12x142mm thru-axle, flat-mount disc
SUSPENSION
FORK
S-Works FACT carbon, 100x12mm thru-axle, flat-mount disc
COCKPIT
STEM
Venge integrated stem, 6-degree
TAPE
Roubaix S-Wrap
SADDLE
Body Geometry Power, Hollow Titanium rails
SEATPOST
2019 S-Works Venge aero seatpost, FACT carbon
SEAT BINDER
Venge integrated two-piece wedge
HANDLEBARS
S-Works Aerofly II
BRAKES
FRONT BRAKE
SRAM Force eTAP, hydraulic disc
REAR BRAKE
SRAM Force eTAP, hydraulic disc
DRIVETRAIN
FRONT DERAILLEUR
SRAM Force eTAP AXS
REAR DERAILLEUR
SRAM Force eTAP AXS
CASSETTE
SRAM CS XG 1270, 12-speed, 10-33t
CRANKSET
SRAM Force AXS, 48/35T
BOTTOM BRACKET
SRAM DUB for BB30
CHAIN
SRAM Force, 12-speed
WHEELS & TIRES
FRONT WHEEL
Roval CL 50 Disc, carbon, tubeless-ready, Win Tunnel Engineered, 50mm depth, 21h
REAR WHEEL
Roval CL 50 Disc, carbon, tubeless-ready, Win Tunnel Engineered, 50mm depth, DT Swiss 350 internals, 24h
FRONT TIRE
S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
REAR TIRE
S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
INNER TUBES
Turbo Ultralight, 60mm Presta valve

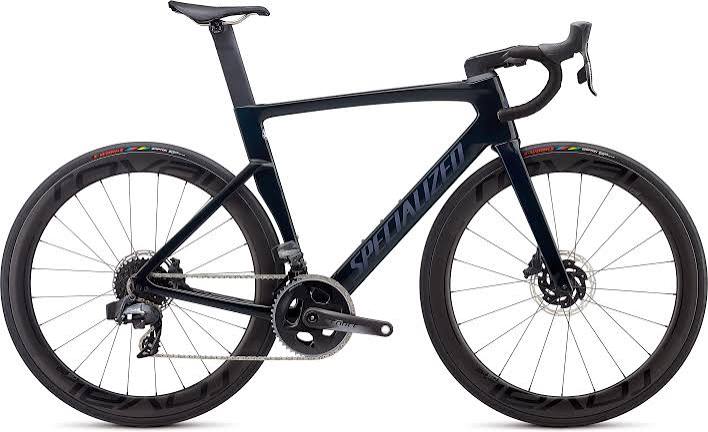

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
