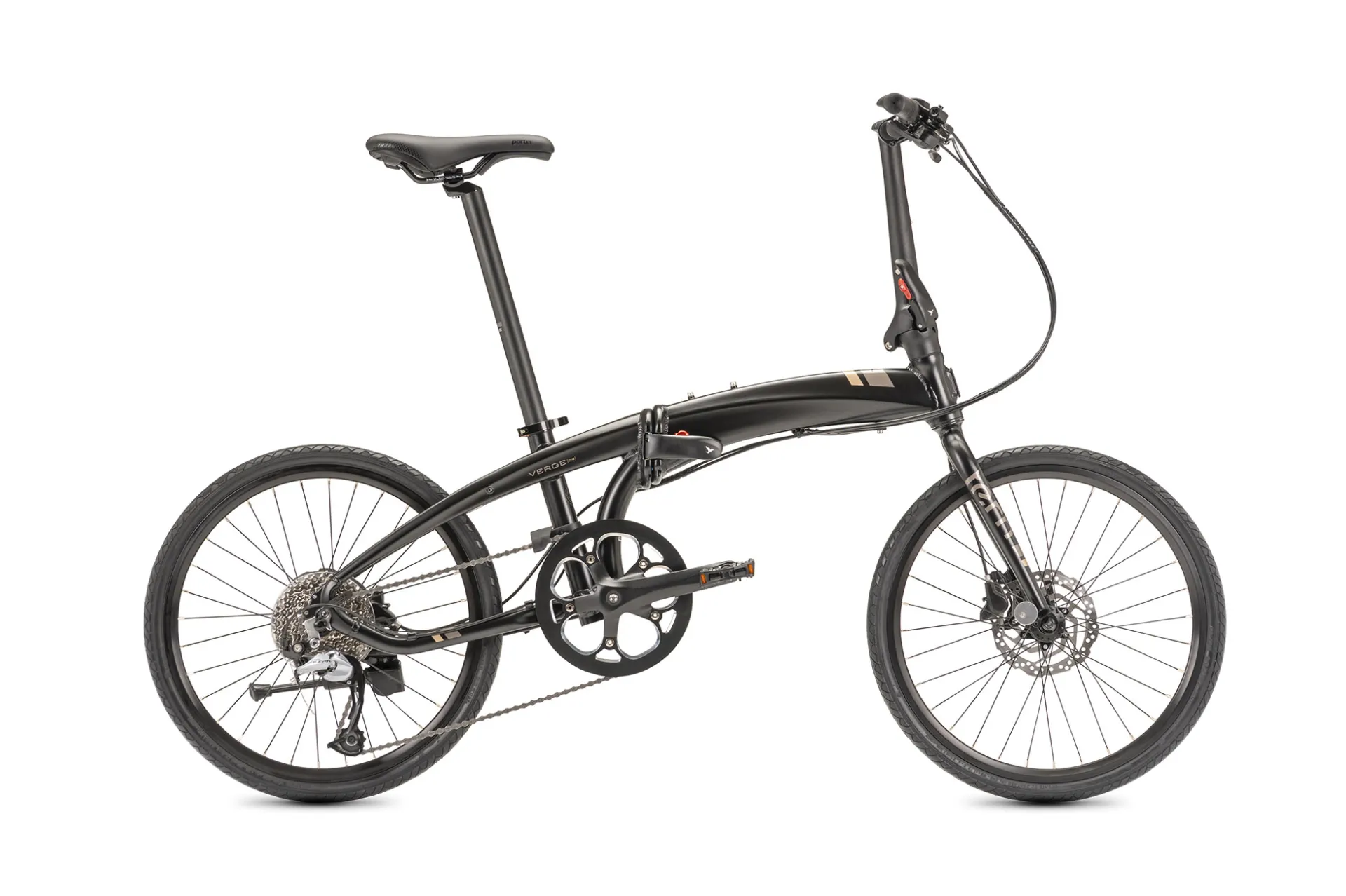

Tern Verge D9 Folding Bike

Price: $899.00
    Color:


    Update price
    Quantity:

    The Verge D9 is a trailblazer. Born out of our 451 Verge design philosophy, it has bigger race wheels, T-Tuned™ geometry, and a wide 1x drivetrain. It’s about as much value as we could condense into one bike, and it’s ready for any upgrades you can throw at it.

    • Verge quality, style, and performance at an entry-level price point
    • Folds in under 10 seconds—fits under a desk
    • Rides with exceptional comfort and stability thanks to our unique technology and T-Tuned geometry
    • 451 wheels deliver a full-sized ride with minuscule impact on the folded size
    • Shimano Acera drivetrain, with 11-36T for all-purpose versatility
    • Tern Porter™ saddle for easy shoulder-mounted bike carrying

    Specifications

    General Info

    Color:

    Wheel Size:

    451 wheels

    Speeds:

    1 x 9

    Weight:

    12.2 kg (26.9 lb)

    Folding Size:

    44 x 80 x 74 cm (17.3" x 31.5" x 29.1")

    Folding Time:

    10 seconds

    Frame Sizes:

    One size

    Gear Inches:

    30" - 97" (2.36 - 7.72 m)

    Distance: Seatpost to Handlebar:

    Min. 620 mm (24.4"); Max: 670 mm (26.4")

    Distance: Saddle to Pedal:

    Min: 700 mm (27.6"); Max: 960 mm (37.8")

    Suggested Rider Height:

    142 - 190 cm (4'8" - 6'3")

    Max Load Weight:

    105 kg (230 lb)

    Frame

    Frame:

    Tern Verge, hydroformed aluminum, 3 patented technologies

    Fork:

    Integrated, hi-tensile steel

    Cockpit

    Handlepost:

    Tern Physis 3D, 3D forged, 5 patented technologies

    Stem:

    Syntace VRO, adjustable, Built for Tern

    Headset:

    Flux, cartridge bearings, Physis integrated

    Handlebar:

    Flat bar, 6061-Al

    Grips/Bar Tape:

    Velo ergonomic, lock-on

    Saddle:

    Tern Porter, patented GripPad design

    Seatpost:

    SuperOversize, 6061-Al, micro-adjust clamp

    Seatpost Clamp:

    SuperOversize, 6061-Al

    Brakes

    Front Brake:

    V, aluminum, linear spring

    Rear Brake:

    V, aluminum, linear spring

    Brake Levers:

    V, aluminum bracket/lever

    Brake Cable & Housing:

    Anti-compression housing, slick cables

    Wheels

    Front Hub:

    Mini, aluminum, QR

    Rear Hub:

    Formula, 9 spd cassette

    Spokes and Nipples:

    Stainless steel

    Rims:

    Doublewall aluminum

    Tires:

    CST, 37-451, light skinwall, 60 tpi

    Transmission

    Shifter(s):

    Shimano, trigger, 1 x 9 spd

    Rear Derailleur:

    Yes

    Crankset:

    Opt: RP Chromeplastic, stainless hardware

    Cassette/Freewheel:

    Shimano Acera Shadow

    Bottom Bracket:

    Forged 6061 aluminum, 53T

    Chain:

    Cartridge, sealed bearings

    Pedals:

    11-36T, 9 spd

    Shifter Cable & Housing:

    Folding, alloy body

    Bells & Whistles

    Bell:

    KMC 9 spd

    Kickstand:

    SP

    Clip System:

    Aluminum

    Luggage Socket:

    Deluxe rear mount

    Fenders:

    Magnetix 2.0

    *Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
