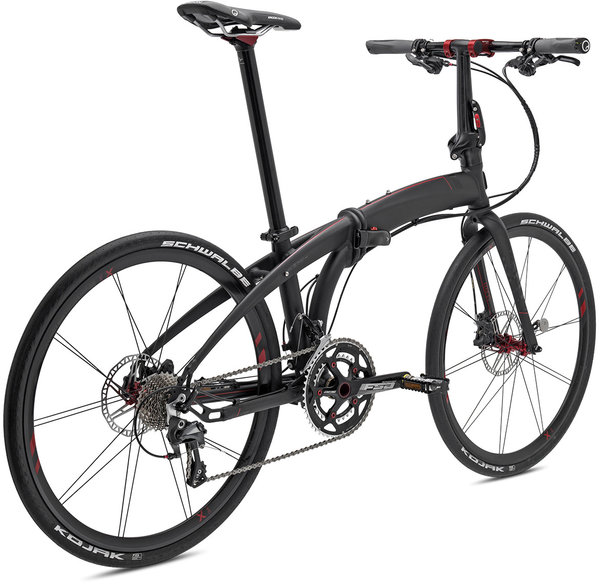

Tern Eclipse X22

The Eclipse X22 is designed to be the fastest folding bike in the world. With hand-built 26'' wheels and race-tuned geometry, it's a full sized road bike, but it folds down small in 10 seconds. It boasts an Ultegra drivetrain, and just in time for the UCI's new regulations a set of Shimano hydraulic disc brakes. With a stealth black finish, hydroformed fork, red Syntace accents, and perfected engineering, the X22 inaugurates a new chapter in Tern design.

• Kinetix Pro X 26'' wheels with straight-pull Sapim spokes for a blazingly fast ride
• Shimano Ultegra / 105 drivetrain for 22 speeds and Grand Tour gear inches
• Shimano SLX hydraulic disc brakes for extreme stopping power
• Adjustable VRO handlebar stem to fine tune your ride position
• High performance Kojak road tires with puncture protection
• SR-71 matte finish
• Fold and store indoors for the best theft protection

Specifications

General Info

Color:

Wheel Size:

26" wheels

Speeds:

2 x 11

Weight:

11.3 kg (24.9 lb)

Folding Size:

42 x 89 x 81 cm (16.5" x 35" x 31.9")

Folding Time:

10 sec

Frame Sizes:

One size

Gear Inches:

30" - 112" (2.38 - 8.92 m)

Distance: Seatpost to Handlebar:

Min: 600 mm (23.6") Max: 640 mm (25.2")

Distance: Saddle to Pedal:

Min: 770 mm (30.3") Max: 1040 mm (40.9")

Suggested Rider Height:

148 - 195 cm (4'10" - 6'5")

Max Load Weight:

105 kg (230 lb)

Frame

Frame:

Tern Eclipse, hydroformed 7005-Al w/ smooth TIG welding, 3 patented technologies

Fork:

Tarsus, 6061-AL, hydroformed

Cockpit

Handlepost:

Tern Physis 3D (G2), 3D forged, 5 patented technologies

Stem:

Syntace VRO, adjustable

Headset:

Flux Pro, angular contact bearings, Physis integrated

Handlebar:

Kinetix Pro X, 7050-Al, multi-stage butted

Grips/Bar Tape:

Ergon GS1 Leichtbau

Saddle:

Ergon SMC30 Pro, TiNox Rails

Seatpost:

Stasis by Syntace, 7050-AL, hard-anodized

Seatpost Clamp:

Syntace OverLock

Brakes

Front Brake:

Shimano SLX, hydraulic disc

Rear Brake:

Shimano SLX, hydraulic disc

Brake Levers:

Shimano SLX, hydraulic disc

Brake Cable & Housing:

Shimano SLX, hydraulic

Wheels

Front Hub:

Kinetix Pro X Disc, 20H, straight-pull

Rear Hub:

Kinetix Pro X Disc, 20H, straight-pull, asymmetric flange

Spokes and Nipples:

Sapim CX-Sprint, internal Polyax nipples

Rims:

Kinetix Pro X, 6061-T10 aluminum, patented Rolf Paired Spoke design

Tires:

Schwalbe Kojak, 35-559, foldable, puncture protection, 95 psi

Transmission

Shifter(s):

Shimano Ultegra trigger, 2x11 spd

Front Derailleur:

Shimano 105

Rear Derailleur:

Shimano Ultegra

Crankset:

FSA Gossamer Pro, 50/34T, BB386 oversized aluminum spindle

Cassette/Freewheel:

Shimano 105, 11-28T, 11 spd

Bottom Bracket:

FSA MegaEVO, BB386

Chain:

Shimano 105, 11 spd

Pedals:

MKS UB-LITE EZY, QR

Shifter Cable & Housing:

Jagwire LEX-SD, ultra-slick polymer coating, alloy ferrules

Bells & Whistles

Bell:

Pitch, Brass

Clip System:

Magnetix 2.0

Luggage Socket:

Yes

Rear Light:

BioLogic TailLight

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
