General Info
Model Name

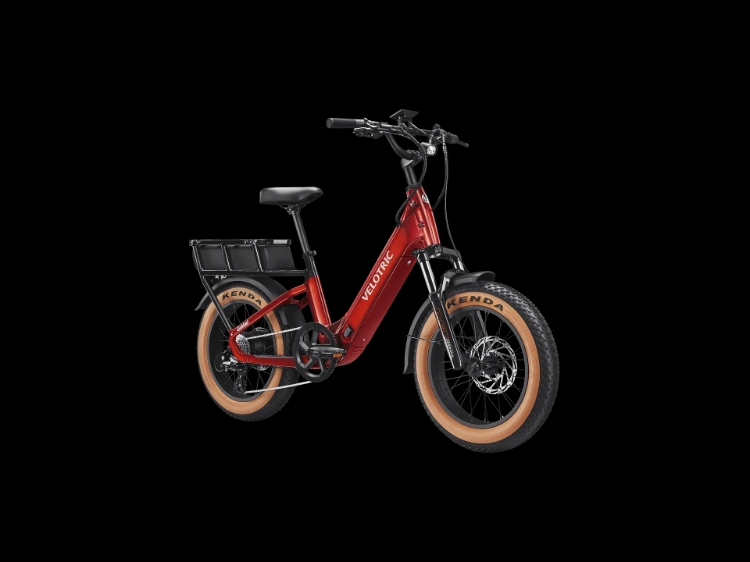

Velotric GoMad
Colors
New Dark Amber, Obsidian, Sage
Frame
Triple-Butted Aluminum Alloy
Size Guide
Bike Size
One Size
User Height Range
5'0'' ~ 6'3''
Electronics
Motor Hub
48V, 750W (1300W Peak Power), 85Nm
Battery
48V, 16.7Ah (801.6Wh), IPX7, UL2271 Certified
Cell
Samsung/LG 21700 cell, UL2580 Certified
Charger
48V, 3A Fast Charger
Display
3.5" Full Color, High Brightness, Bluetooth, NFC, Adjustable Angle
Sensor
Torque and Cadence Sensor
USB Port
USB Type-C Phone Charge
Throttle Assist
Trigger-control, Removable
Pedal Assist Modes
5 Riding Modes + Stealth Mode / Ride Tuning
Walk Mode
2.9MPH / Walk & Hold
Rear Light
Braking Indicator, Turn Signal, Rear Light Steady/Flash, Integrated with Rear Rack
Front Light
500LM High-output Integrated LED, Adjustable Angle
Water Resistant
IPX6
App
App OTA
Anti-theft
Apple Find My & Android Find Hub, NFC Card Unlock
Frameset
Frame
Triple-Butted Aluminum Alloy
Fork
RST Hydraulic Suspension 100mm Travel with Lock-out, 36mm Inner Tube
Speed & Range
Max Speed (Default)
20 MPH
Max Speed Adjustable Range
12~28 MPH
Class
1/2/3
Throttle Range
50 Miles
Pedal Assist Range
75 Miles
Brake
Brake
Tektro Hydraulic Disc Brake
Rotors
203mm Front / 180mm Rear
Brake Levers
Aluminum Alloy, with Power Cutoff
Weight & Load
Bike Weight
77 lbs
Max Bike Load
500 lbs
Rear Rack Load Capacity
176 lbs
Cockpit
Handlebar
BMX Style, 31.8mm Bar Clamp, 700mm
Grips
Durable Ergonomic Grips, Lockable
Stem
Quill Stem, 31.8mm Clamp, 30mm Length, 140mm Vertical Adjustment Range
Saddle
VELOTRIC Comfort Ergonomic Seat
Seatpost
Aluminum Alloy, Φ30.9mm
Clamp
Aluminum Alloy, Quick Release
Wheel
Rims
Aluminum Alloy
Front Hub
NOVATEC Aluminum Alloy, 15x135mm Thru-axle
Tire
KENDA 20x4.0" eBike Puncture Resistant Tires
Supports
Fenders
Plastic, Front and Rear Full Coverage
Rear Rack
MIK HD Compatible, Integrated with Frame
Rear Rack Bag
Included as Standard Equipment
Pedals
Plastic
Kickstand
Aluminum Alloy, Included, Rear Mount
Certification
UL Certification
UL2849 & UL2271
ISO Standard
ISO 4210
Drivetrain
Chainrings
52T Narrow-Wide Chainring
Crankset
Aluminum Alloy, 165mm
Freewheel
8-speed, 11-34T
Chain
KMC 8-speed
Rear Derailleur
SHIMANO 8-speed
Shift Lever
SHIMANO 8-speed
