General Info
Model Name

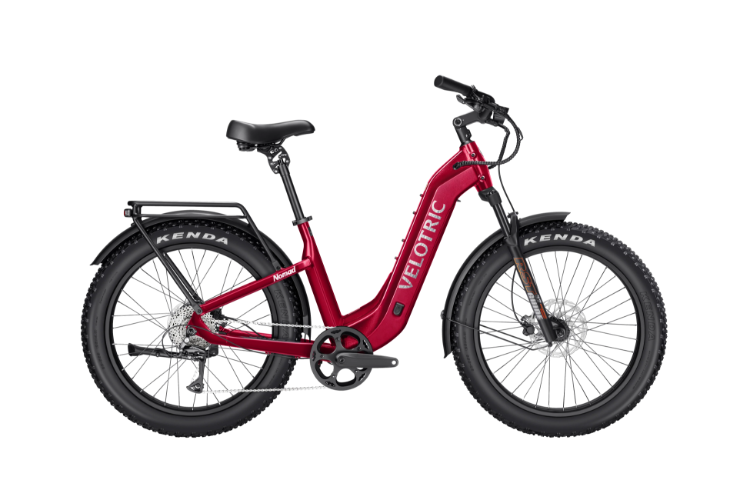

Velotric Nomad 2
Colors
ST: Cranberry, Slate, Olive, Midnight Blue
HS: Sage, Midnight Blue
Frame
Triple-Butted Aluminum Alloy
Size Guide
Bike Size
Regular / Large
User Height Range
ST (With Suspension Seatpost):
Regular: 5'2'' ~ 5'11'' Large: 5'10'' ~ 6'5''
ST:
Regular: 4'11'' ~ 5'10'' Large: 5'7'' ~ 6'5''
HS:
Regular: 5'2'' ~ 5'11'' Large: 5'10'' ~ 6'5''
Electronics
Motor
48V, 750W, 1300W Peak, 90Nm
Battery
Removable, 48V, 14.7Ah (705.6Wh), IPX7, UL 2271 Certified
Cell
21700 cell, UL 2580 Certified
Charger
48V, 3A Fast Charger
Sensor
Torque & Cadence Sensor
Display
3.5" Full color, high brightness, Bluetooth, adjustable angle
USB Port
USB Type-C phone charge
Throttle
Trigger-control, removable
Pedal Assist
3 Riding Modes x 5 PAS Levels
Walk Mode
2.9 MPH
Front Light
Light sensing 130 Lux / 500 LM high-output integrated LED, adjustable angle
Rear Light
Braking indicator, turn signal, steady/flash modes, integrated with rear rack
Water Resistant
IPX6
Frameset
Frame
Triple-Butted Aluminum Alloy
Fork
RST Hydraulic suspension, 100mm travel with lock-out, nutted
Rear Shock
N/A
Speed & Range
Max Speed (Default)
20 MPH
Max Speed Adjustable Range
12~28 MPH
Class
1 / 2 / 3
Throttle Range
45 Miles
Pedal Assist Range
65 Miles
Drivetrain
Chainrings
48T
Crankset
Aluminum Alloy, 165mm
Freewheel
8-speed, 11–40T
Rear Derailleur
SHIMANO 8-speed
Shift Lever
SHIMANO 8-speed
Chain
8-speed
Brake
Brake
Tektro Hydraulic Disc Brake
Rotors
203mm front / 180mm rear
Brake Levers
Aluminum Alloy, with power cutoff
Wheel
Rims
Aluminum Alloy
Front Hub
Aluminum Alloy, nutted
Tire
KENDA 26x4.0" eBike puncture-resistant tires
Cockpit
Handlebar
Aluminum Alloy, Φ31.8mm, 680mm (R) / 700mm (L)
Grips
Durable ergonomic grips, lockable
Stem
Adjustable, Aluminum Alloy, Φ31.8mm, 60mm (R) / 90mm (L)
Saddle
VELOTRIC comfort ergonomic seat
Seatpost
Aluminum Alloy, φ30.9mm, Suspension
Clamp
Aluminum Alloy, quick release
Supports
Fenders
Front and rear full coverage
Rear Rack
MIK HD compatible alloy
Pedals
Plastic
Kickstand
Aluminum Alloy, included, rear mount
Weight & Load
Bike Weight
75 lbs
Rear Rack Load Capacity
66 lbs
Max Bike Load Capacity
505 lbs
Certification
UL Certification
UL 2849
ISO Standard
ISO 4210
